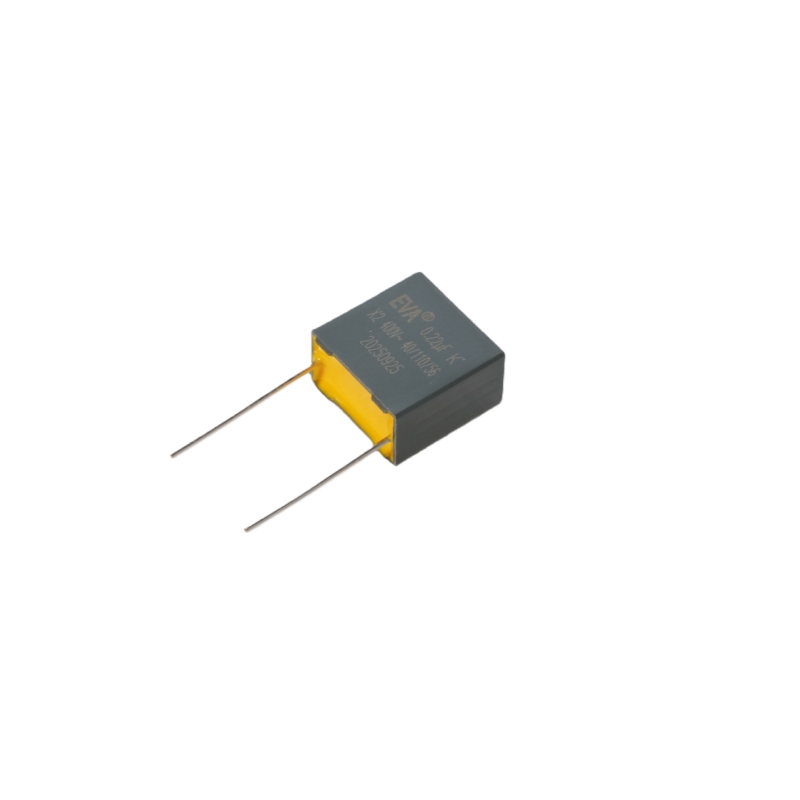

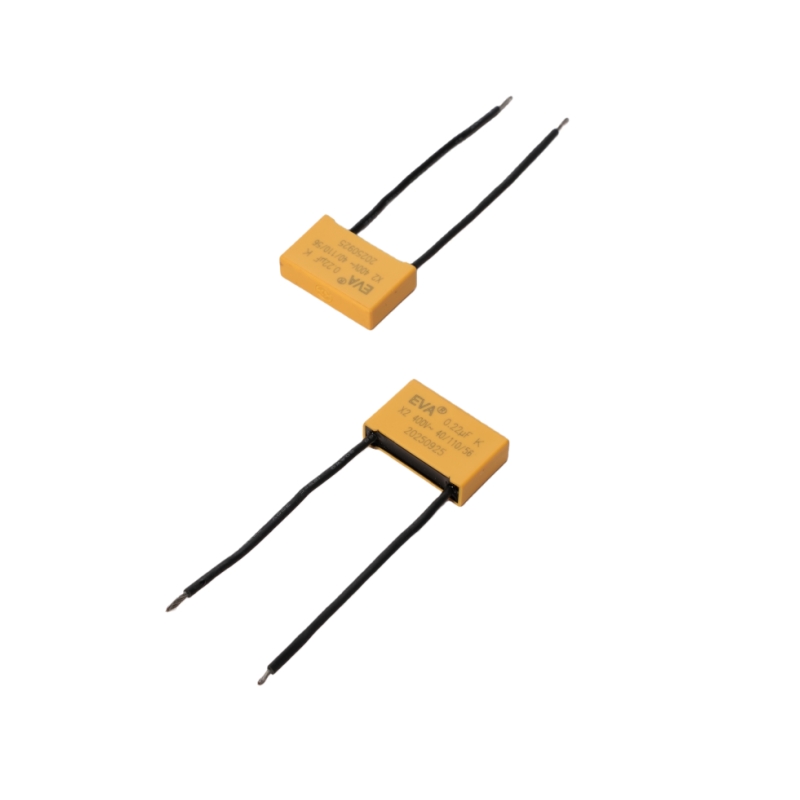

MKP X2 film capacitors are designed for electromagnetic interference suppression in air conditioning systems, ensuring stable and compliant operation of control and power circuits.
Model Number :
MKP X2Brand Name :
EVAShape :
RectangularTerminal :
CP WiresProtection Class :
S0,S3Color :
Yellow,Blue,Grey,etcWarranty :
3 years or 5 yearsOperation Temperature :
40/105/21/COrder(MOQ) :
50Product Origin :
Anhui,ChinaPayment :
T/T,L/C,DPLead Time :
7-15 DaysShipping Port :
Shanghai,Ningbo,Qingdao,Guangzhou,Yiwu,etcIn air conditioner systems, MKP X2 capacitors are commonly used in AC input sections to reduce electrical noise and suppress interference generated during switching and motor operation.
By adopting metallized polypropylene film dielectric, MKP X2 capacitors provide stable capacitance, high safety performance, and reliable long-term operation in household and commercial air conditioning units.
Their design complies with safety capacitor standards, making them suitable for continuous connection across AC power lines.
Key Features
Metallized polypropylene film dielectric with self-healing capability
Designed for across-the-line EMI suppression applications
Stable electrical performance under AC voltage fluctuations
Flame-retardant plastic case for enhanced safety
Suitable for long-term operation in power input circuits
Technical Parameter：
🔹 X2 safety class capacitor for AC line interference suppression
🔹 Metallized polypropylene film dielectric
🔹 Stable electrical performance under voltage fluctuations
🔹 Excellent self-healing characteristics
🔹 Designed for long-term AC operation
| Subclass | X2 | |
| Rated voltage | 250/275/310VAC (50/60Hz) | |
| Capacitance range | 0.22μF～3.3μF | |
| Capacitance tolerance | ±5% (J), ±10% (K) | |
| Voltage proof | between terminals | 4.3*UR (VDC) / 10s |
| between terminals and case | 2*UR+1500 (VAC) / 60s(2000VAC min) | |
| Insulation resistance (20℃) | between terminals | ≥15000MΩ, CR≤0.33μF(100VDC,60s) |
| between terminals and case | ≥5000S, CR＞0.33μF (100VDC, 60s) | |
| Tangent of loss angle (20℃) | CR≤1μF | ≤0.001 (1KHz); ≤0.003 (10KHz) |
| CR＞1μF | ≤0.002 (1KHz) | |
| Pulse rise time(dv/dt) | 100V/ μs Max | |
Typical Applications:
MKP X2 film capacitors are widely applied in air conditioning systems, including:
❄️ AC Input Circuits – EMI and noise suppression
⚙️ Control Boards – Signal filtering and stability enhancement
🔌 Power Supply Modules – Interference reduction
🌬️ Indoor & Outdoor Units – Electrical noise control
⭐ Product Advantage
Improves electromagnetic compatibility of air conditioners
Reduces conducted interference on AC power lines
Enhances system stability and compliance with safety standards
Supports reliable long-term appliance operation
Why Choose Our Capacitors
*Over 17 years of manufacturing experience in motor capacitors
*Strict process control from winding to final electrical testing
*Stable long-term supply for OEM and bulk orders
*Custom capacitance, voltage, and lead configuration available

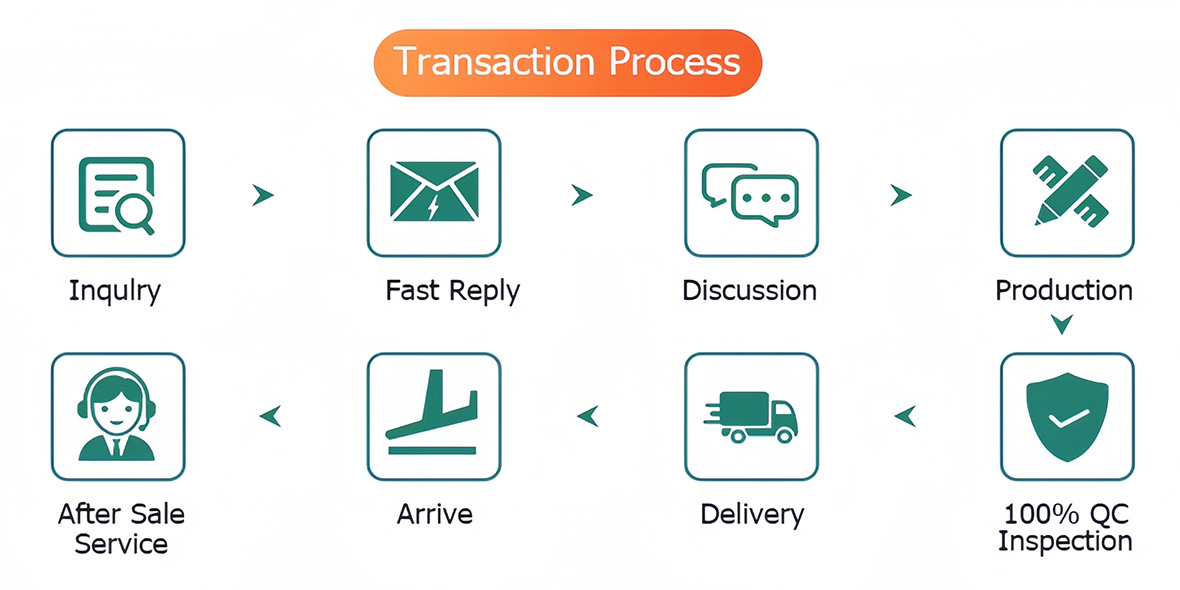

How To Order
Our Certificate
Our Exhibition
Our Packing
Packing
Our standard packaging follows a double-protection structure of inner box + Outer carton, ensuring your products arrive safely and in perfect condition. For certain items, we also offer individual packaging options, which can be fully customlized according to your requirements.
All outer cartons are made from export-grade, 5-ply corrugated material, providing exceptional strength, compression resistance, and durability during long-distance transportation. We strictly follow international packaging standards to guarantee secure delivery—whether by sea, air, or express.
Customlized packaging, labeling, and palletizing can also be arranged to meet your specific logistics or branding needs.
Logistics & Payment
🚢 Shipping Methods
We provide multiple shipping solutions to meet different delivery needs:
Sea Freight — stable and cost-effective
Air Freight — fast and suitable for urgent or small-volume shipments
We will recommend the best shipping method based on your order size, delivery schedule, and budget.
FAQ
1. Q:What is the principle of explosion-proof safety film capacitor?
A:The metallized electrodes adopt tiny fuses structure. If there is any failure during capacitor operation, the power supply is automatically cut off by disconnecting the micro-fuse. In this way, the failure can be prevented and self-safety protection realized.
2. Q:What’s meaning of P0(S0) and P2(S3) in the EVA capacitor?
A:P0(S0) and P2(S3) are refer to the class of safety protection. P0(S0) means non-explosion-proof. P2(S3) means explosion-proof.
3. Q:Common Installation Methods of Fan Capacitor
A:According to customers’ different installation methods on products, EVA-capacitor can provide the following capacitor styles. EVA-ac motor capacitors are used for starting, running and adjusting speed. EVA-Capacitor are widely applied in table tans, floor fans, ceiling fans, wall fans, luxury ceiling fans, exhaust fans, extractor fans, heater, smash paper machine, turbine, dehumidifier, etc.
Noted: Since the capacitor is made of plastic material, improper installation of the capacitor can cause the plastic ear to break. Therefore, the customer should pay attention to the URYU, screw, hole position to maintain vertical state during the fan capacitor installation.
4. What capacitance tolerances are available?
A:Tolerance on rated capacitance determines its application. Common values are ±5%（J）,±10%（K0）, ±20%（M）.
