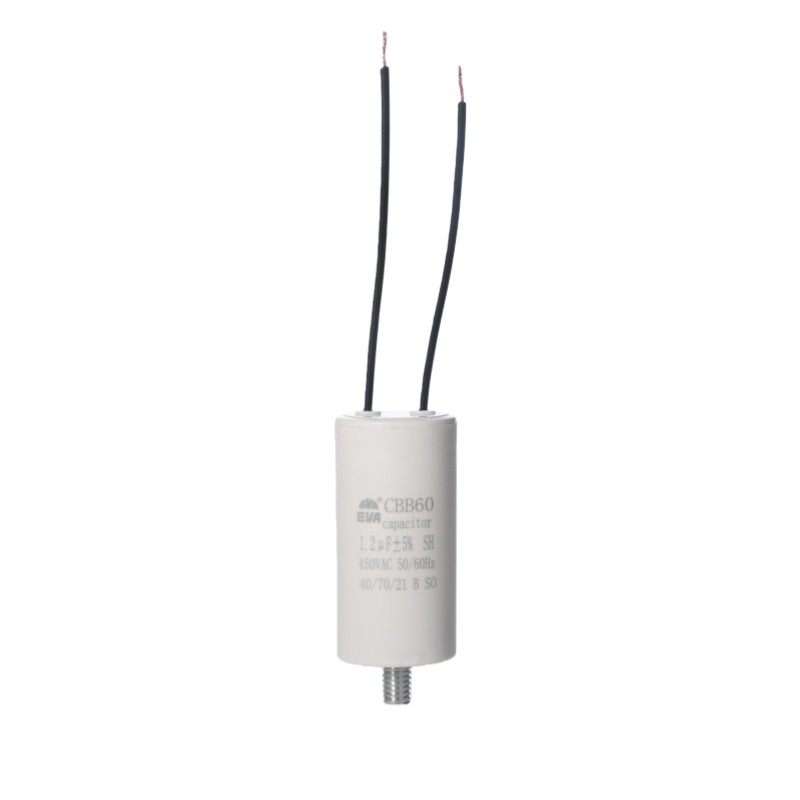

CCBB60 AC Motor Run Capacitor for Washing Machines & Water Pumps
The CBB60 motor run capacitor is made of metalized polypropylene film, offering low ESR, stable performance, and long service life. It is widely used in AC single-phase motors for continuous operation.
Model Number :
CBB60Brand Name :
EVAShape :
RoundTerminal :
Pins or WiresProtection Class :
S0,S3Color :
White or BlackWarranty :
3 years or 5 yearsOperation Temperature :
40/85/21Order(MOQ) :
50Product Origin :
Anhui,ChinaPayment :
T/T,L/C,DPLead Time :
7-15 DaysShipping Port :
Shanghai,Ningbo,Qingdao,Guangzhou,YiwuThe CBB60 motor run capacitor is designed for continuous operation in single-phase AC motors.
It provides stable capacitance performance under long working hours and is widely used in household and light industrial motor systems.
Key Features
Designed for single-phase AC motor applications, ensuring stable motor operation
Low dielectric loss and high insulation resistance for continuous running
Compact cylindrical design suitable for limited installation space
Consistent performance under varying voltage and temperature conditions
Technical Parameter：
| Ambient Temp | Rated Voltage (VAC) |
Range of Capacitance (μf) |
Testing Voltage (VAC) |
Dissipation Factor | Operating Frequency |
| -40-85ºC | 150-630 | 1-100 | T-T:2Un/2S T-C:≥2200VAC/2S |
tanδ≤0.002(100Hz) | 50/60Hz |
Capacitance Tolerance: ±5% or fulfilled upon request.

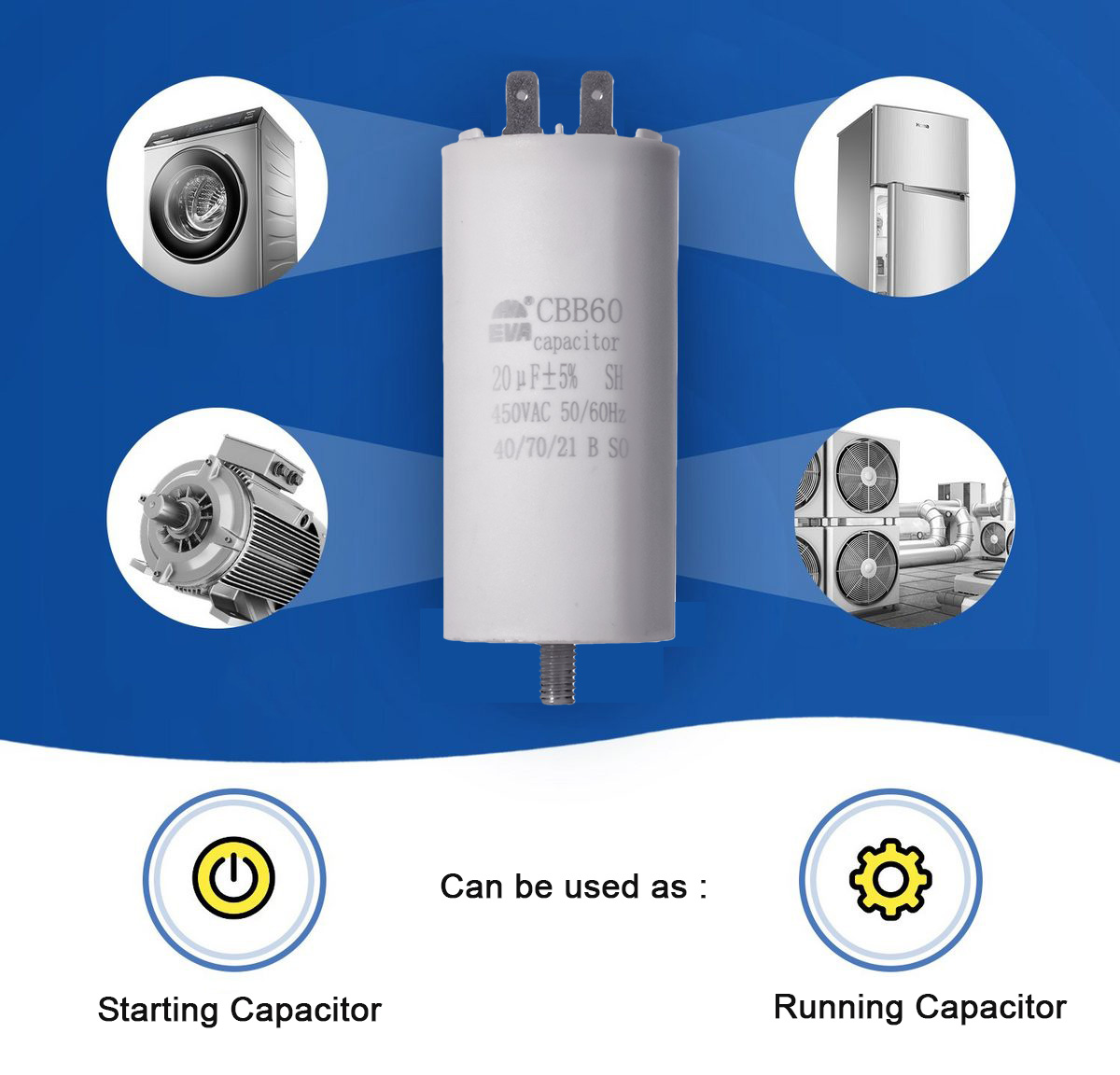

Typical Applications:
🧺 Washing Machines
🚰 Water Pumps
💨 Air Compressors
⚙️ Ventilation fans
🏠 Other motor-driven household appliances
🏭 Industrial Equipment
Product Advantage
The CBB60 capacitor is a reliable and high-performance solution designed to improve the efficiency, stability, and starting torque of single-phase motors. It ensures smoother operation, enhanced durability, and better overall performance in various household and industrial applications.
Why Choose Our Capacitors
01 Competitive Price
Cost-effective solutions from factory direct supply
02 Strict QC System
100% Electrical Testing & Reliability Inspection
03 Self-Owned Factory
Full range production of film capacitors
04 In-Stock Available
Short lead time & fast shipment
05 17 Years Experience
Since 2008.07 in capacitor manufacturing
06 One-Stop BOM Service
BOM quotation within 4 hours
07 Support ODM / OEM
Customized design & branding support
08 Original Manufacturer
Stable quality & fast delivery time

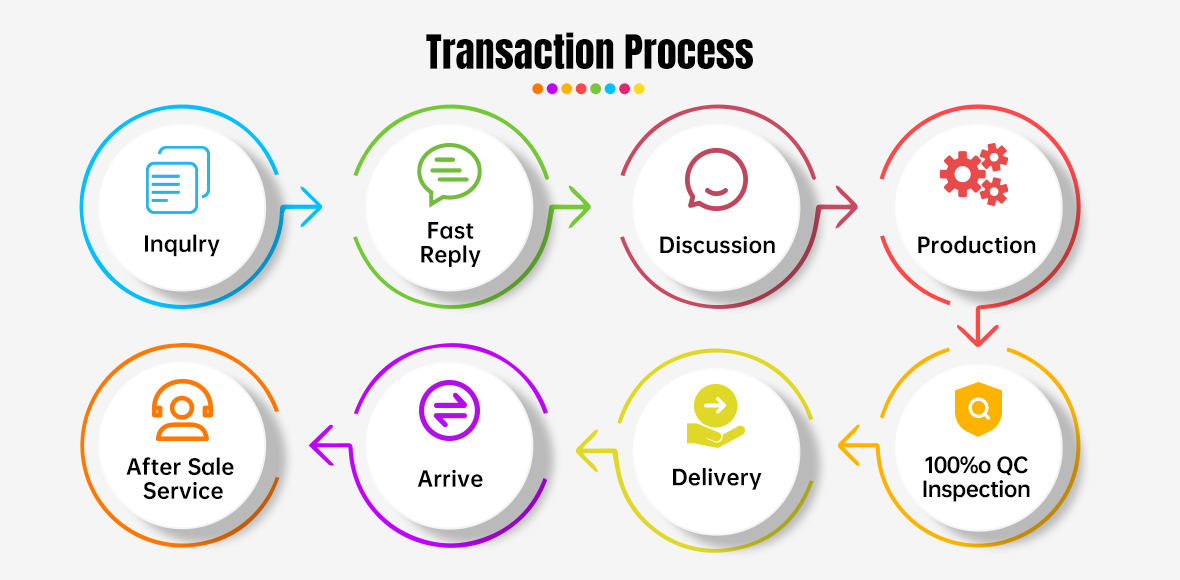

How To Order
Our Certificate
Our Exhibition
Our Packing
Packing
Our standard packaging follows a double-protection structure of inner box + Outer carton, ensuring your products arrive safely and in perfect condition. For certain items, we also offer individual packaging options, which can be fully customlized according to your requirements.
All outer cartons are made from export-grade, 5-ply corrugated material, providing exceptional strength, compression resistance, and durability during long-distance transportation. We strictly follow international packaging standards to guarantee secure delivery—whether by sea, air, or express.
Customlized packaging, labeling, and palletizing can also be arranged to meet your specific logistics or branding needs.
Logistics & Payment
🚢 Shipping Methods
We provide multiple shipping solutions to meet different delivery needs:
Sea Freight — stable and cost-effective
Air Freight — fast and suitable for urgent or small-volume shipments
We will recommend the best shipping method based on your order size, delivery schedule, and budget.
FAQ
1. Q:What is the principle of explosion-proof safety film capacitor?
A:The metallized electrodes adopt tiny fuses structure. If there is any failure during capacitor operation, the power supply is automatically cut off by disconnecting the micro-fuse. In this way, the failure can be prevented and self-safety protection realized.
2. Q:What’s meaning of P0(S0) and P2(S3) in the EVA capacitor?
A:P0(S0) and P2(S3) are refer to the class of safety protection. P0(S0) means non-explosion-proof. P2(S3) means explosion-proof.
3. Q:Common Installation Methods of Fan Capacitor
A:According to customers’ different installation methods on products, EVA-capacitor can provide the following capacitor styles. EVA-ac motor capacitors are used for starting, running and adjusting speed. EVA-Capacitor are widely applied in table tans, floor fans, ceiling fans, wall fans, luxury ceiling fans, exhaust fans, extractor fans, heater, smash paper machine, turbine, dehumidifier, etc.
Noted: Since the capacitor is made of plastic material, improper installation of the capacitor can cause the plastic ear to break. Therefore, the customer should pay attention to the URYU, screw, hole position to maintain vertical state during the fan capacitor installation.
4. What capacitance tolerances are available?
A:Tolerance on rated capacitance determines its application. Common values are ±5%（J）,±10%（K0）, ±20%（M）.
