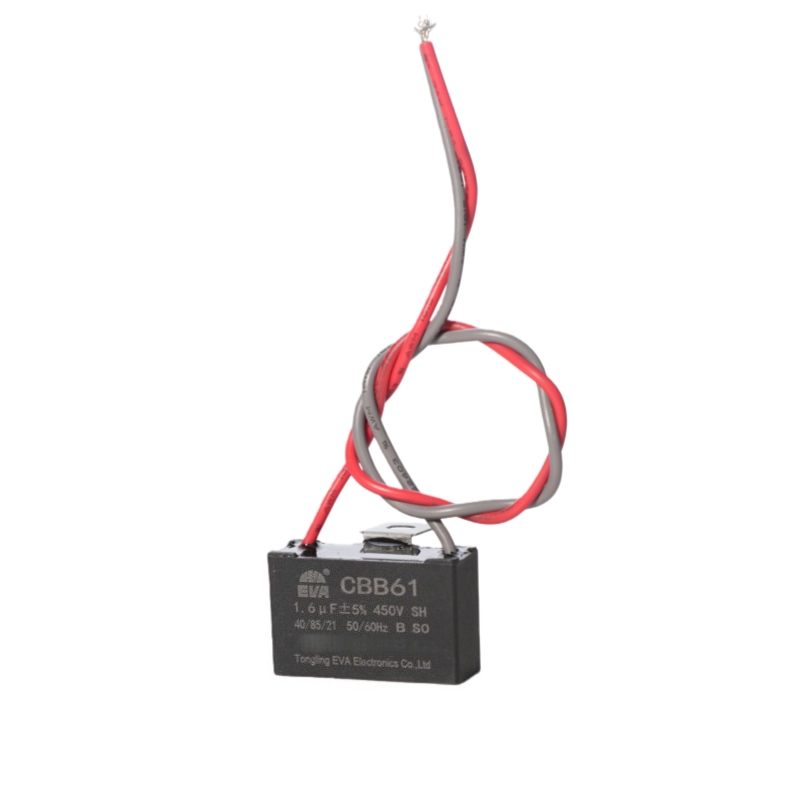

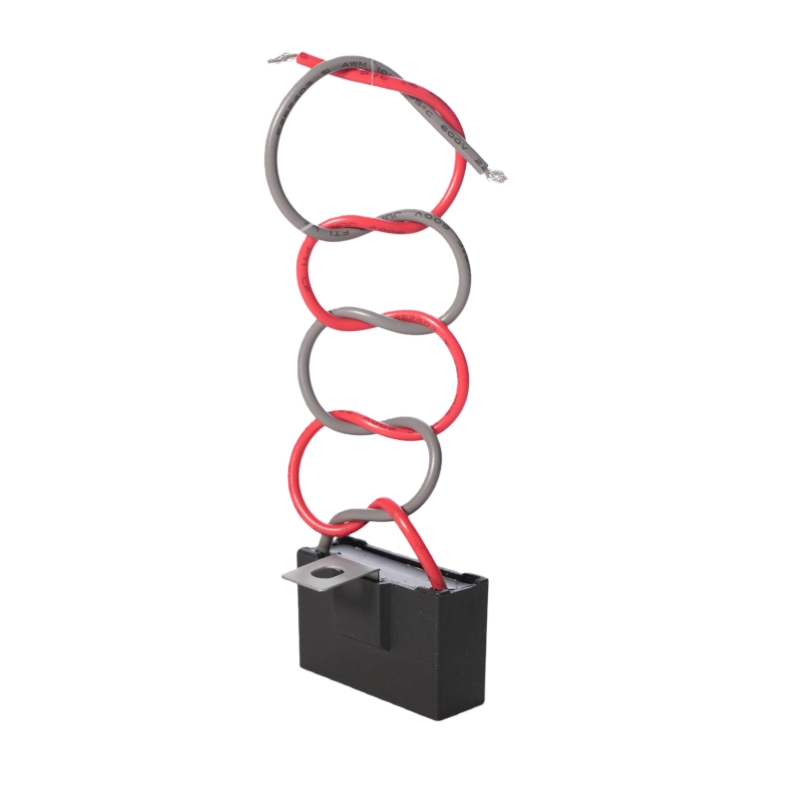

CBB61 Air Conditioner Capacitor 2 Wire 1.6uf Compatible with 400/350/300/250VAC Fan Capacitor 50/60Hz
CBB61 capacitors are widely used in air conditioner fan systems, providing dependable electrical support for stable motor operation and consistent airflow performance.
Model Number :
CBB61Brand Name :
EVAShape :
RectangularTerminal :
Pins or WiresProtection Class :
S0,S3Color :
Black,White,Blue,Red,Grey,etcWarranty :
3 years or 5 yearsOperation Temperature :
40/70/21Order(MOQ) :
50Product Origin :
Anhui,ChinaPayment :
T/T,L/C,DPLead Time :
7-15 DaysShipping Port :
Shanghai,Ningbo,Qingdao,Guangzhou,Yiwu,etcIn air conditioning equipment, fan motors require continuous and balanced electrical input to maintain efficient ventilation.
CBB61 capacitors, manufactured with metallized polypropylene film, help stabilize motor performance by maintaining consistent capacitance during long operating cycles.
Their compact and lightweight structure allows easy integration into indoor and outdoor air conditioner units.
Key Features
Stable capacitance under continuous operation
Low loss characteristics for efficient motor support
Compact form factor suitable for AC units
Technical Parameter：
| Ambient Temp | Rated Voltage (VAC) |
Range of Capacitance (μf) |
Testing Voltage (VAC) |
Dissipation Factor | Operating Frequency |
| -40-85ºC | 150-630 | 0.5-30 | T-T:2Un/2S | tanδ≤0.002(100Hz) | 50/60Hz |
Capacitance Tolerance: ±5% or fulfilled upon request.
Typical Applications:
CBB61 motor run capacitors are widely applied in air conditioner systems, including:
🌬️ Air conditioner indoor fan motors
❄️ Outdoor unit ventilation fans
⚙️ HVAC air circulation assemblies
⭐ Product Advantage
Maintains stable airflow output
Improves fan motor operational balance
Supports long-term system reliability
Why Choose Our Capacitors
*Over 17 years of manufacturing experience in motor capacitors
*Strict process control from winding to final electrical testing
*Stable long-term supply for OEM and bulk orders
*Custom capacitance, voltage, and lead configuration available

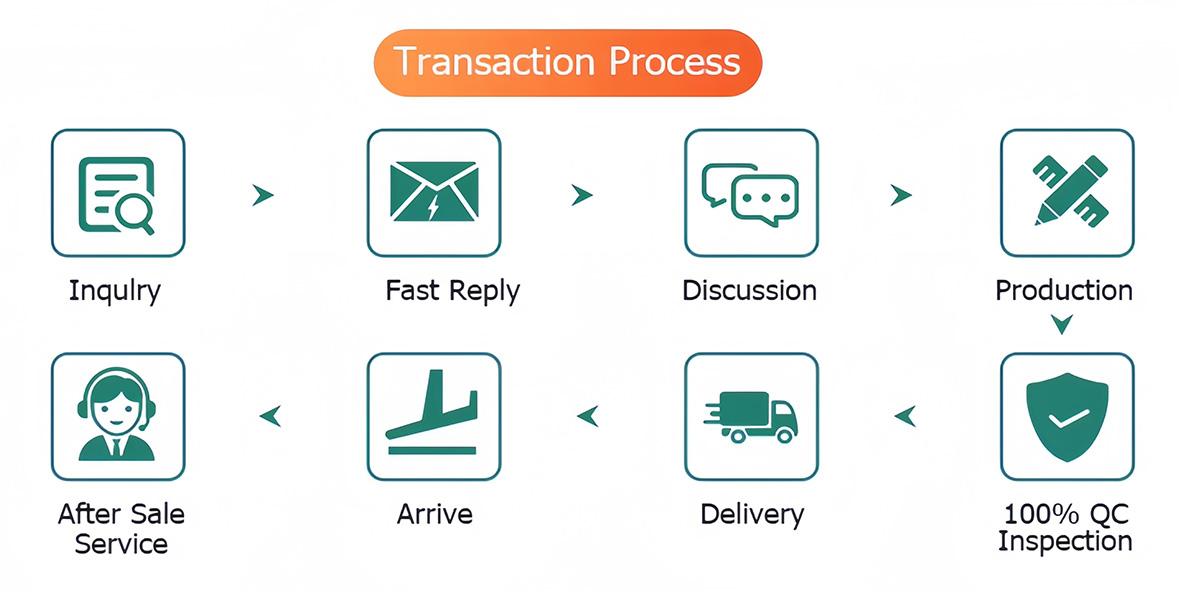

How To Order
Our Certificate
Our Exhibition
Our Packing
Packing
Our standard packaging follows a double-protection structure of inner box + Outer carton, ensuring your products arrive safely and in perfect condition. For certain items, we also offer individual packaging options, which can be fully customlized according to your requirements.
All outer cartons are made from export-grade, 5-ply corrugated material, providing exceptional strength, compression resistance, and durability during long-distance transportation. We strictly follow international packaging standards to guarantee secure delivery—whether by sea, air, or express.
Customlized packaging, labeling, and palletizing can also be arranged to meet your specific logistics or branding needs.
Logistics & Payment
🚢 Shipping Methods
We provide multiple shipping solutions to meet different delivery needs:
Sea Freight — stable and cost-effective
Air Freight — fast and suitable for urgent or small-volume shipments
We will recommend the best shipping method based on your order size, delivery schedule, and budget.
FAQ
1. Q:What is the principle of explosion-proof safety film capacitor?
A:The metallized electrodes adopt tiny fuses structure. If there is any failure during capacitor operation, the power supply is automatically cut off by disconnecting the micro-fuse. In this way, the failure can be prevented and self-safety protection realized.
2. Q:What’s meaning of P0(S0) and P2(S3) in the EVA capacitor?
A:P0(S0) and P2(S3) are refer to the class of safety protection. P0(S0) means non-explosion-proof. P2(S3) means explosion-proof.
3. Q:Common Installation Methods of Fan Capacitor
A:According to customers’ different installation methods on products, EVA-capacitor can provide the following capacitor styles. EVA-ac motor capacitors are used for starting, running and adjusting speed. EVA-Capacitor are widely applied in table tans, floor fans, ceiling fans, wall fans, luxury ceiling fans, exhaust fans, extractor fans, heater, smash paper machine, turbine, dehumidifier, etc.
Noted: Since the capacitor is made of plastic material, improper installation of the capacitor can cause the plastic ear to break. Therefore, the customer should pay attention to the URYU, screw, hole position to maintain vertical state during the fan capacitor installation.
4. What capacitance tolerances are available?
A:Tolerance on rated capacitance determines its application. Common values are ±5%（J）,±10%（K0）, ±20%（M）.
