MKP X2 Safety Capacitor for EMI Suppression in AC Power Circuits
Designed for AC power input protection, X2 safety capacitors help suppress electromagnetic interference and improve electrical stability in household and industrial electronic equipment.
Model Number :
MKP X2Brand Name :
EVAShape :
RectangularTerminal :
CP WiresProtection Class :
S0,S3Color :
Yellow,Blue,Grey,etcWarranty :
3 years or 5 yearsOperation Temperature :
40/105/21/COrder(MOQ) :
50Product Origin :
Anhui,ChinaPayment :
T/T,L/C,DPLead Time :
7-15 DaysShipping Port :

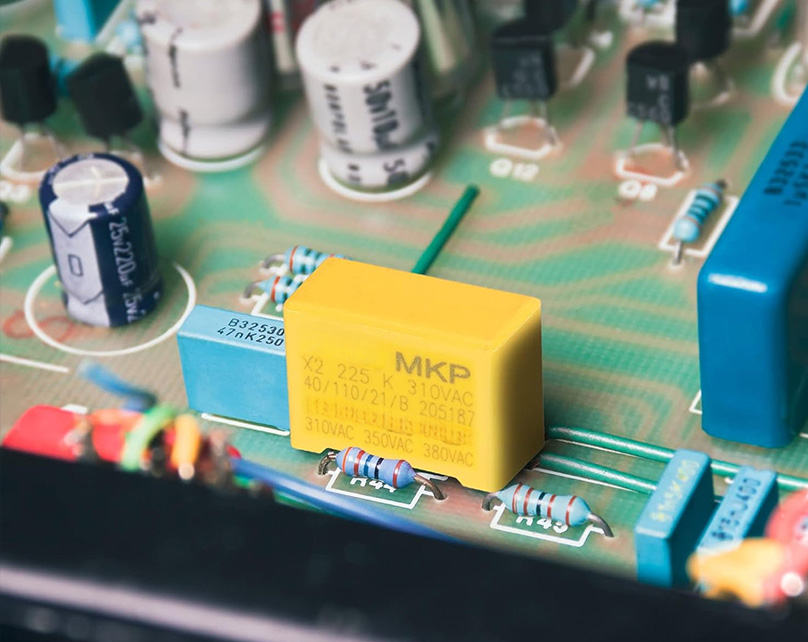

Shanghai,Ningbo,Qingdao,Guangzhou,Yiwu,etcThe X2 capacitor is a metallized polypropylene film safety capacitor installed across AC power lines.
It is designed for electromagnetic interference suppression and is widely used in power input filtering circuits of electronic and electrical equipment.
Key Features
Metallized polypropylene film dielectric with self-healing capability
Designed for across-the-line EMI suppression applications
Stable electrical performance under AC voltage fluctuations
Flame-retardant plastic case for enhanced safety
Suitable for long-term operation in power input circuits
Technical Parameter：
Dielectric: Metallized Polypropylene Film
Safety Class: X2
Structure: Box-type, epoxy resin sealed
Capacitance Range: Multiple options available (customizable)
Designed for AC power input filtering and noise suppression
Suitable for standard household and industrial operating conditions
| Subclass | X2 | |
| Rated voltage | 250/275/310VAC (50/60Hz) | |
| Capacitance range | 0.22μF～3.3μF | |
| Capacitance tolerance | ±5% (J), ±10% (K) | |
| Voltage proof | between terminals | 4.3*UR (VDC) / 10s |
| between terminals and case | 2*UR+1500 (VAC) / 60s(2000VAC min) | |
| Insulation resistance (20℃) | between terminals | ≥15000MΩ, CR≤0.33μF(100VDC,60s) |
| between terminals and case | ≥5000S, CR＞0.33μF (100VDC, 60s) | |
| Tangent of loss angle (20℃) | CR≤1μF | ≤0.001 (1KHz); ≤0.003 (10KHz) |
| CR＞1μF | ≤0.002 (1KHz) | |
| Pulse rise time(dv/dt) | 100V/ μs Max | |
Typical Applications:
🧺 Washing Machine Application
❄️ Refrigerator Application
⭐ Product Advantage
Improves electromagnetic compatibility (EMC) performance
Enhances circuit safety and stability
Reliable quality for mass production and OEM supply
Stable performance suitable for long-term operation
Consistent quality supported by standardized manufacturing
Why Choose Our Capacitors
*Over 17 years of manufacturing experience in motor capacitors
*Strict process control from winding to final electrical testing
*Stable long-term supply for OEM and bulk orders
*Custom capacitance, voltage, and lead configuration available
Our Certificate
Our Exhibition
Our Packing
Packing
Our standard packaging follows a double-protection structure of inner box + Outer carton, ensuring your products arrive safely and in perfect condition. For certain items, we also offer individual packaging options, which can be fully customlized according to your requirements.
All outer cartons are made from export-grade, 5-ply corrugated material, providing exceptional strength, compression resistance, and durability during long-distance transportation. We strictly follow international packaging standards to guarantee secure delivery—whether by sea, air, or express.
Customlized packaging, labeling, and palletizing can also be arranged to meet your specific logistics or branding needs.
Logistics & Payment
🚢 Shipping Methods
We provide multiple shipping solutions to meet different delivery needs:
Sea Freight — stable and cost-effective
Air Freight — fast and suitable for urgent or small-volume shipments
We will recommend the best shipping method based on your order size, delivery schedule, and budget.
FAQ
1. Q:What is the principle of explosion-proof safety film capacitor?
A:The metallized electrodes adopt tiny fuses structure. If there is any failure during capacitor operation, the power supply is automatically cut off by disconnecting the micro-fuse. In this way, the failure can be prevented and self-safety protection realized.
2. Q:What’s meaning of P0(S0) and P2(S3) in the EVA capacitor?
A:P0(S0) and P2(S3) are refer to the class of safety protection. P0(S0) means non-explosion-proof. P2(S3) means explosion-proof.
3. Q:Common Installation Methods of Fan Capacitor
A:According to customers’ different installation methods on products, EVA-capacitor can provide the following capacitor styles. EVA-ac motor capacitors are used for starting, running and adjusting speed. EVA-Capacitor are widely applied in table tans, floor fans, ceiling fans, wall fans, luxury ceiling fans, exhaust fans, extractor fans, heater, smash paper machine, turbine, dehumidifier, etc.
Noted: Since the capacitor is made of plastic material, improper installation of the capacitor can cause the plastic ear to break. Therefore, the customer should pay attention to the URYU, screw, hole position to maintain vertical state during the fan capacitor installation.
4. What capacitance tolerances are available?
A:Tolerance on rated capacitance determines its application. Common values are ±5%（J）,±10%（K0）, ±20%（M）.
