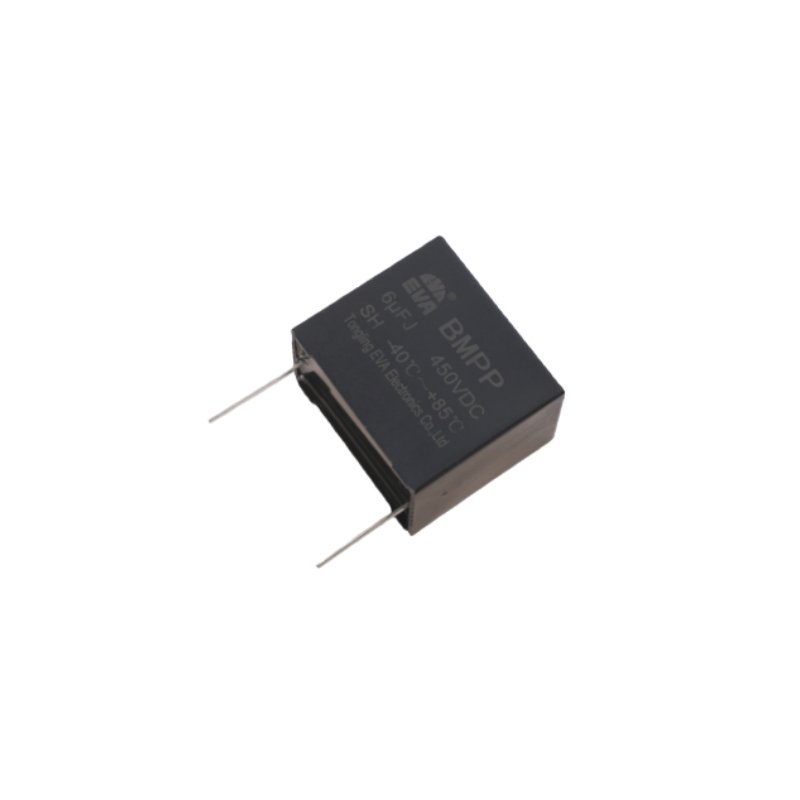

BMPP Metallized Polypropylene Capacitor for Household Appliances
Designed for household appliance motor and power circuits, BMPP capacitors provide stable electrical performance for washing machines and refrigerators operating under frequent or long working cycles.
Model Number :
BMPPBrand Name :
EVAShape :
RectangularTerminal :
PinsProtection Class :
S0,S3Color :
Black,White,Blue,Red,Grey,etcWarranty :
3 years or 5 yearsOperation Temperature :
-25 °C~105°COrder(MOQ) :
50Product Origin :
Anhui,ChinaPayment :
T/T,L/C,DPLead Time :
7-15 DaysShipping Port :
Shanghai,Ningbo,Qingdao,Guangzhou,Yiwu,etcThe BMPP capacitor is a box-type metallized polypropylene film capacitor used in household appliance electrical circuits.
It is suitable for washing machines and refrigerators requiring stable capacitance, low loss characteristics, and reliable long-term operation.
Key Features

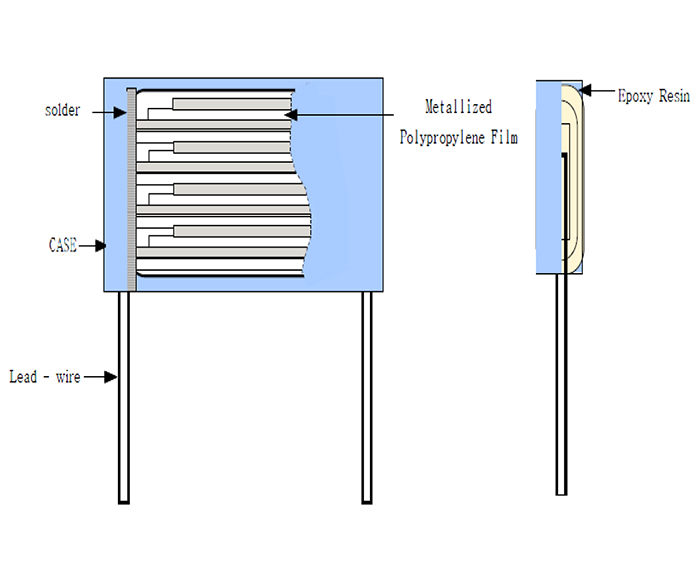

Metallized polypropylene film construction ensures stable capacitance performance
Low dielectric loss design helps reduce heat generation during operation
Box-type plastic case provides improved mechanical strength and protection
Good self-healing capability enhances long-term reliability
Suitable for household appliance electrical circuits with frequent or continuous duty

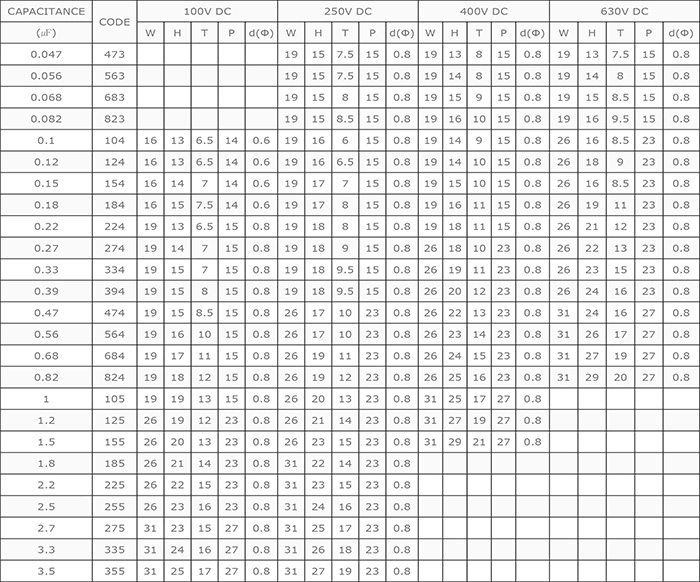

Technical Parameter：
Rated Voltage: 100VDC/250VDC/400VDC/630VDC
Capacitance Range: 0.047uf ~3.5uf
Operating Temperature: -25 °C~105°C
Typical Applications:
🧺 Washing Machine Application
❄️ Refrigerator Application
⭐ Product Advantage
Stable capacitance for household appliance motor applications
Low dielectric loss helps reduce heat generation
Suitable for frequent start–stop and long working hours
Box-type structure provides better mechanical protection
Reliable performance for mass production and long-term supply
Why Choose Our Capacitors
*Over 17 years of manufacturing experience in motor capacitors
*Strict process control from winding to final electrical testing
*Stable long-term supply for OEM and bulk orders
*Custom capacitance, voltage, and lead configuration available
Our Certificate
Our Exhibition
Our Packing
Packing
Our standard packaging follows a double-protection structure of inner box + Outer carton, ensuring your products arrive safely and in perfect condition. For certain items, we also offer individual packaging options, which can be fully customlized according to your requirements.
All outer cartons are made from export-grade, 5-ply corrugated material, providing exceptional strength, compression resistance, and durability during long-distance transportation. We strictly follow international packaging standards to guarantee secure delivery—whether by sea, air, or express.
Customlized packaging, labeling, and palletizing can also be arranged to meet your specific logistics or branding needs.
Logistics & Payment
🚢 Shipping Methods
We provide multiple shipping solutions to meet different delivery needs:
Sea Freight — stable and cost-effective
Air Freight — fast and suitable for urgent or small-volume shipments
We will recommend the best shipping method based on your order size, delivery schedule, and budget.
FAQ
1. Q:What is the principle of explosion-proof safety film capacitor?
A:The metallized electrodes adopt tiny fuses structure. If there is any failure during capacitor operation, the power supply is automatically cut off by disconnecting the micro-fuse. In this way, the failure can be prevented and self-safety protection realized.
2. Q:What’s meaning of P0(S0) and P2(S3) in the EVA capacitor?
A:P0(S0) and P2(S3) are refer to the class of safety protection. P0(S0) means non-explosion-proof. P2(S3) means explosion-proof.
3. Q:Common Installation Methods of Fan Capacitor
A:According to customers’ different installation methods on products, EVA-capacitor can provide the following capacitor styles. EVA-ac motor capacitors are used for starting, running and adjusting speed. EVA-Capacitor are widely applied in table tans, floor fans, ceiling fans, wall fans, luxury ceiling fans, exhaust fans, extractor fans, heater, smash paper machine, turbine, dehumidifier, etc.
Noted: Since the capacitor is made of plastic material, improper installation of the capacitor can cause the plastic ear to break. Therefore, the customer should pay attention to the URYU, screw, hole position to maintain vertical state during the fan capacitor installation.
4. What capacitance tolerances are available?
A:Tolerance on rated capacitance determines its application. Common values are ±5%（J）,±10%（K0）, ±20%（M）.
