CBB65 Model Factory-Made AC Motor Running Capacitor for Air Conditioner Film Capacitors OEM/ODM manufacturer
Developed for air conditioning systems with higher power demand, CBB65 capacitors ensure reliable motor operation and stable electrical performance during long cooling cycles.
Model Number :
CBB65Brand Name :
EVAShape :
RoundTerminal :
PinsProtection Class :
S2Color :
Silver aluminum shellWarranty :
3 years or 5 yearsOperation Temperature :
25/85/21Order(MOQ) :
50Product Origin :
Anhui,ChinaPayment :
T/T,L/C,DPLead Time :
7-15 DaysShipping Port :

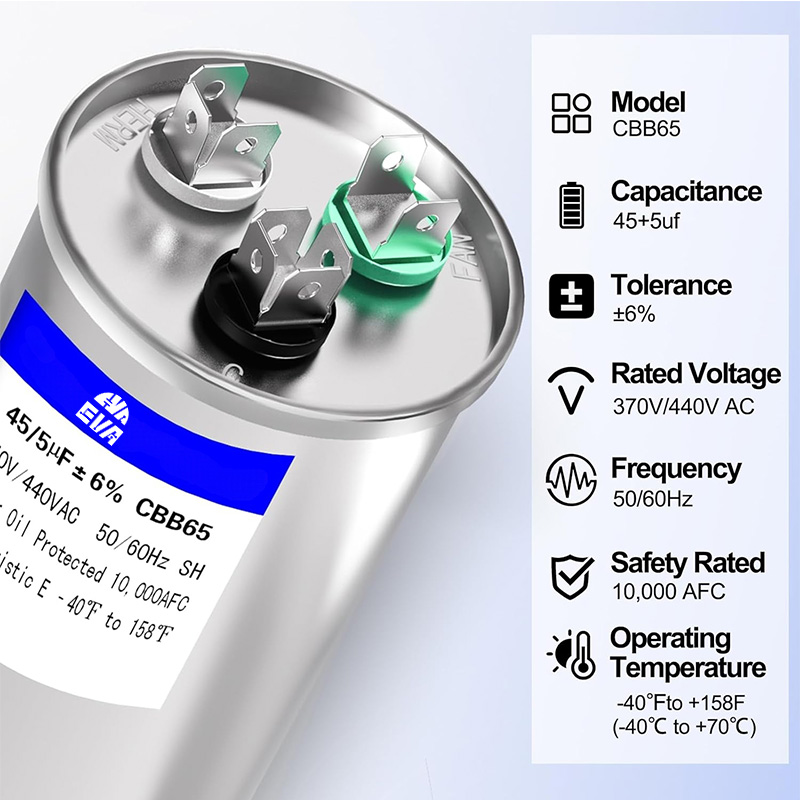

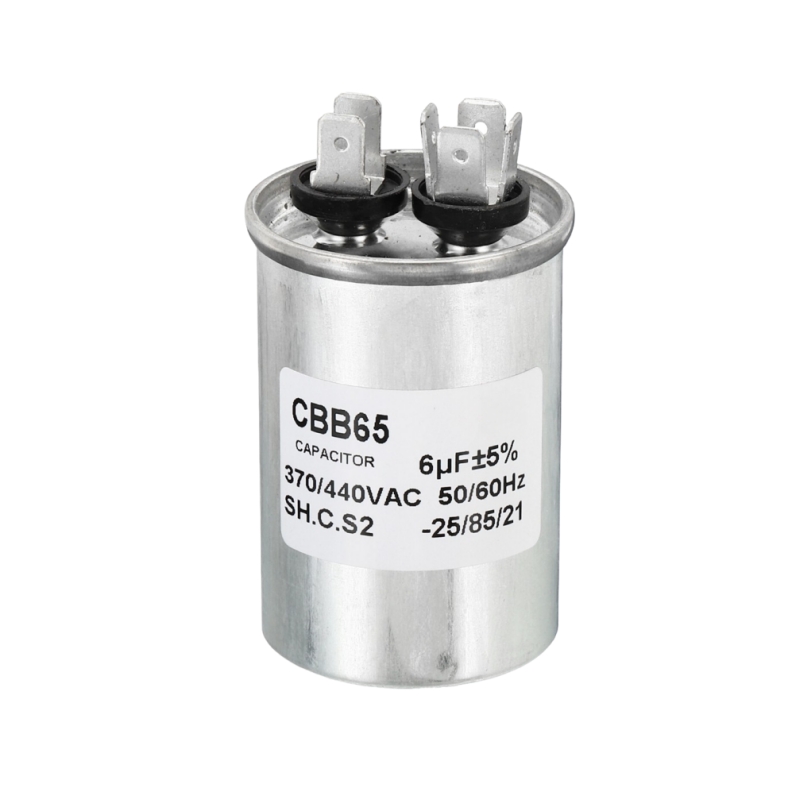

Shanghai,Ningbo,Qingdao,Guangzhou,YiwuThe CBB65 capacitor is a high-capacity motor run capacitor designed for air conditioner applications.
It is commonly used in compressor and fan motor circuits where higher capacitance and stable output are required.
Key Features
High capacitance design for high-load air conditioner motors
Supports stable operation of compressor and fan motors
Aluminum housing improves heat dissipation under continuous operation
Designed for long working hours in air conditioning systems
Suitable for both OEM production and replacement markets
Technical Parameter：
| Ambient Temp | Rated Voltage (VAC) |
Range of Capacitance (μf) |
Testing Voltage (VAC) |
Dissipation Factor | Operating Frequency |
| -40-85ºC | 150-630 | 2-100 | T-T:2Un/2S T-C:≥2200VAC/2S |
tanδ≤0.002(100Hz) | 50/60Hz |
Capacitance Tolerance: ±5% or fulfilled upon request.
Typical Applications:
❄️ Air Conditioning Systems
Widely used in air conditioners to support high-power compressor motors and fan motors.
Ensures stable electrical performance during peak load operation and extended cooling cycles.
Product Advantage
*Designed for higher power air conditioner systems
*Stable capacitance output under continuous electrical load
*Enhanced thermal performance for enclosed installation environments
*Reliable quality for long-term operation
*Suitable for large-scale OEM air conditioner manufacturing
Why Choose Our Capacitors
*Over 17 years of manufacturing experience in motor capacitors
*Strict process control from winding to final electrical testing
*Stable long-term supply for OEM and bulk orders
*Custom capacitance, voltage, and lead configuration available
Our Certificate
Our Exhibition
Our Packing
Packing
Our standard packaging follows a double-protection structure of inner box + Outer carton, ensuring your products arrive safely and in perfect condition. For certain items, we also offer individual packaging options, which can be fully customlized according to your requirements.
All outer cartons are made from export-grade, 5-ply corrugated material, providing exceptional strength, compression resistance, and durability during long-distance transportation. We strictly follow international packaging standards to guarantee secure delivery—whether by sea, air, or express.
Customlized packaging, labeling, and palletizing can also be arranged to meet your specific logistics or branding needs.
Logistics & Payment
🚢 Shipping Methods
We provide multiple shipping solutions to meet different delivery needs:
Sea Freight — stable and cost-effective
Air Freight — fast and suitable for urgent or small-volume shipments
We will recommend the best shipping method based on your order size, delivery schedule, and budget.
FAQ
1. Q:What is the principle of explosion-proof safety film capacitor?
A:The metallized electrodes adopt tiny fuses structure. If there is any failure during capacitor operation, the power supply is automatically cut off by disconnecting the micro-fuse. In this way, the failure can be prevented and self-safety protection realized.
2. Q:What’s meaning of P0(S0) and P2(S3) in the EVA capacitor?
A:P0(S0) and P2(S3) are refer to the class of safety protection. P0(S0) means non-explosion-proof. P2(S3) means explosion-proof.
3. Q:Common Installation Methods of Fan Capacitor
A:According to customers’ different installation methods on products, EVA-capacitor can provide the following capacitor styles. EVA-ac motor capacitors are used for starting, running and adjusting speed. EVA-Capacitor are widely applied in table tans, floor fans, ceiling fans, wall fans, luxury ceiling fans, exhaust fans, extractor fans, heater, smash paper machine, turbine, dehumidifier, etc.
Noted: Since the capacitor is made of plastic material, improper installation of the capacitor can cause the plastic ear to break. Therefore, the customer should pay attention to the URYU, screw, hole position to maintain vertical state during the fan capacitor installation.
4. What capacitance tolerances are available?
A:Tolerance on rated capacitance determines its application. Common values are ±5%（J）,±10%（K0）, ±20%（
