CBB60 capacitors provide reliable AC motor support for fans, ensuring smooth startup, stable operation, and long-lasting performance in both household and industrial applications.
Model Number :
CBB60Brand Name :
EVAShape :
RoundTerminal :
Pins or WiresProtection Class :
S0,S3Color :
White or BlackWarranty :
3 years or 5 yearsOperation Temperature :
40/85/21Order(MOQ) :
50Product Origin :
Anhui,ChinaPayment :
T/T,L/C,DPLead Time :
7-15 DaysShipping Port :

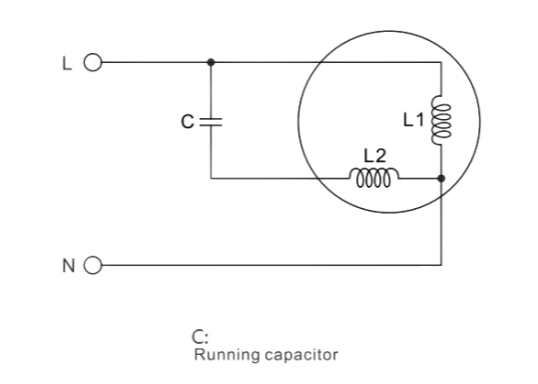

Shanghai,Ningbo,Qingdao,Guangzhou,YiwuThe CBB60 fan capacitor is designed for AC fan motor run circuits, providing stable phase shift and continuous operation for single-phase motors.
It is widely used in ceiling fans, pedestal fans, exhaust fans, and ventilation systems, where consistent torque and smooth rotation are required.
Key Characteristics：
Optimized for AC fan motor run applications
Metallized polypropylene film structure
Stable capacitance over long-term operation
Compact cylindrical design for easy mounting
Designed for 50/60Hz AC fan systems
Technical Parameter：
| Ambient Temp | Rated Voltage (VAC) |
Range of Capacitance (μf) |
Testing Voltage (VAC) |
Dissipation Factor | Operating Frequency |
| -40-85ºC | 150-630 | 1-100 | T-T:2Un/2S T-C:≥2200VAC/2S |
tanδ≤0.002(100Hz) | 50/60Hz |
Capacitance Tolerance: ±5% or fulfilled upon request.
Typical Fan Applications:
🌀Household ceiling fans
🌀Stand and wall-mounted fans
🌀Ventilation and exhaust fans
🌀Light commercial air circulation equipment
🔹Product Advantage
Enhances motor starting and running performance in fans
Reduces electrical noise and voltage stress
Ensures stable operation and energy efficiency
Long service life for household and industrial applications
OEM-friendly for fan manufacturers
Why Choose Our Capacitors
*Over 17 years of manufacturing experience in motor capacitors
*Strict process control from winding to final electrical testing
*Stable long-term supply for OEM and bulk orders
*Custom capacitance, voltage, and lead configuration available
Our Certificate
Our Exhibition
Our Packing
Packing
Our standard packaging follows a double-protection structure of inner box + Outer carton, ensuring your products arrive safely and in perfect condition. For certain items, we also offer individual packaging options, which can be fully customlized according to your requirements.
All outer cartons are made from export-grade, 5-ply corrugated material, providing exceptional strength, compression resistance, and durability during long-distance transportation. We strictly follow international packaging standards to guarantee secure delivery—whether by sea, air, or express.
Customlized packaging, labeling, and palletizing can also be arranged to meet your specific logistics or branding needs.
Logistics & Payment
🚢 Shipping Methods
We provide multiple shipping solutions to meet different delivery needs:
Sea Freight — stable and cost-effective
Air Freight — fast and suitable for urgent or small-volume shipments
We will recommend the best shipping method based on your order size, delivery schedule, and budget.
FAQ
Q1: What is a CBB60 fan capacitor used for?
A: A CBB60 fan capacitor is used in AC fan motor run circuits to provide the necessary phase shift for smooth and stable fan operation.
Q2: What types of fans commonly use CBB60 capacitors?
A: CBB60 capacitors are widely used in ceiling fans, pedestal fans, wall-mounted fans, and exhaust fans in residential and light commercial applications.
Q3: Is this capacitor suitable for continuous fan operation?
A: Yes. This capacitor is designed for continuous AC operation at 50/60Hz, supporting stable fan performance during normal daily use.
Q4: How do I choose the correct CBB60 capacitor for a fan motor?
A: Selection should be based on the required capacitance value, rated voltage, and operating frequency specified by the fan motor manufacturer.
Q5: Can this CBB60 fan capacitor be used as a replacement part?
A: Yes. It can be used as a direct replacement when the electrical ratings match the original capacitor used in the fan motor.
