Understanding CBB65 Motor Run Capacitors: Applications, Features and Selection Tips

In modern HVAC and motor-driven systems, stable motor operation is essential for efficiency, safety, and long-term reliability. Among various AC motor capacitors, the CBB65 motor run capacitor has become one of the most widely used solutions for air conditioners, water pumps, and ventilation systems.

In this blog, we will take a closer look at what CBB65 capacitors are, why they are so popular, and how to choose the right one for your application.

What Is a CBB65 Motor Run Capacitor?

A CBB65 capacitor is an AC motor run capacitor made with metallized polypropylene film (MPP). Its main function is to provide phase shifting for single-phase motors, allowing them to run smoothly and efficiently during continuous operation.

Unlike electrolytic capacitors, CBB65 capacitors are designed for long-term use. They offer lower electrical loss, better capacitance stability, and a much longer service life, making them ideal for applications where motors operate for extended periods.

Why CBB65 Capacitors Are Widely Used

The popularity of CBB65 capacitors is not accidental. Their design and material selection make them especially suitable for demanding motor environments.

One key advantage is their excellent electrical stability. Thanks to the metallized polypropylene film, CBB65 capacitors maintain stable capacitance even under voltage fluctuations or temperature changes.

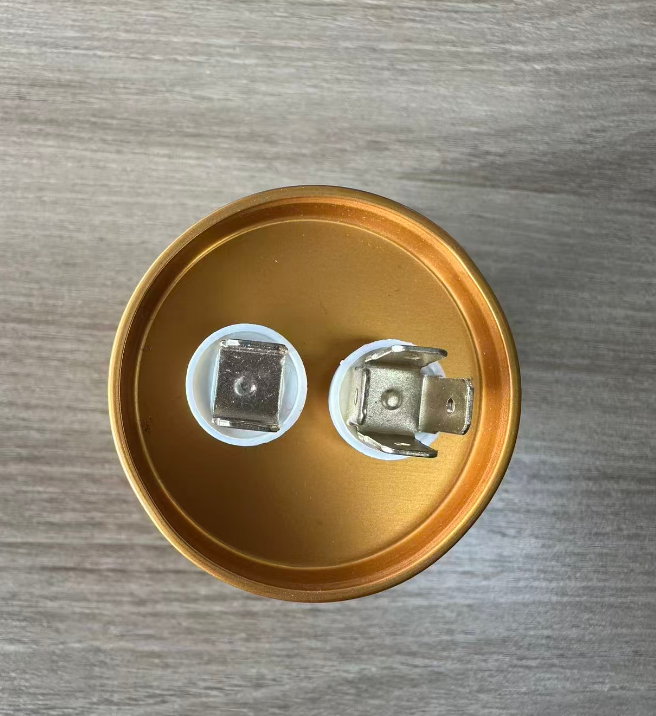

Another important feature is high safety performance. Most CBB65 capacitors are housed in aluminum cases with anti-explosion protection. In addition, the self-healing property of MPP film allows the capacitor to recover from minor dielectric breakdowns, reducing the risk of sudden failure.

Typical Applications of CBB65 Capacitors

CBB65 motor run capacitors are commonly found in:

• Air conditioner compressors

• HVAC systems

• Water pumps and circulation pumps

• Fans, blowers, and ventilation equipment

• Refrigeration and cooling systems

In these applications, CBB65 capacitors help motors achieve stable torque, smoother operation, and reduced noise during continuous running.

Key Technical Characteristics to Know

When engineers or buyers evaluate a CBB65 capacitor, several technical parameters are usually considered:

• Rated Voltage: Typically ranges from 250VAC to 660VAC

• Capacitance Range: From 0.5µF to over 120µF

• Frequency: 50/60Hz

• Operating Temperature: -40°C to +85°C

• Capacitance Tolerance: ±5% or ±10%

These specifications allow CBB65 capacitors to cover a wide range of motor power levels and application environments.

How to Choose the Right CBB65 Capacitor

Selecting the correct CBB65 capacitor is critical for motor performance and lifespan.

First, always choose a voltage rating equal to or higher than the system voltage. Using a higher voltage rating generally improves reliability.

Second, the capacitance value must match the motor’s design requirements. An incorrect capacitance can lead to reduced efficiency, overheating, or even motor damage.

For air conditioning systems, dual-run CBB65 capacitors (for example, 40+5µF) are often used to support both the compressor and fan motor in a single unit.

Finally, consider the operating environment. High ambient temperature, humidity, or long running hours require capacitors with higher endurance and stable materials.

Final Thoughts

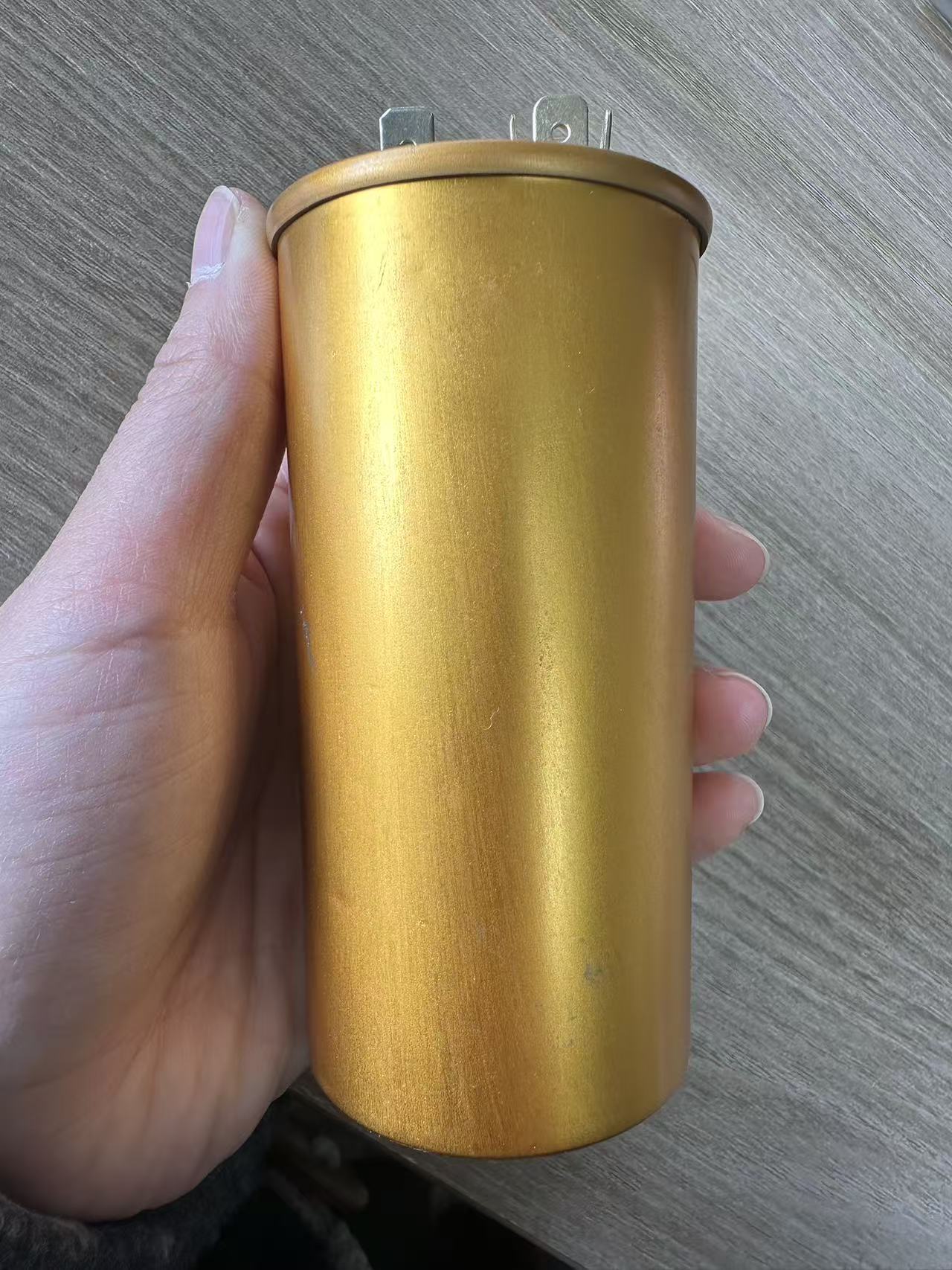

The CBB65 motor run capacitor plays a vital role in ensuring smooth and efficient operation of single-phase AC motors. With its metallized polypropylene film, aluminum case design, and stable electrical performance, it remains a trusted solution for HVAC and motor applications worldwide.

For engineers, distributors, and equipment manufacturers, understanding the characteristics and proper selection of CBB65 capacitors can make a significant difference in product reliability and customer satisfaction.

If you would like to learn more about CBB65 capacitors or explore customized solutions, feel free to contact EVA Comp for technical support and product information.
